Introduction of Sibo 22mm-size potentiometer

·Common small sizes ·Strong adaptability

22 size series - This size is commonly used for potentiometers, with strong adaptability, and is welcomed by engineers. Sibo has developed a wide range of products for this common size product family. Each member of this big family has different specifications, and each product has its own way of survival. let me tell you one by one.

PART 01 Multi-turn potentiometers

22HPM Multi-turn Wire-wound Potentiometer

As a low-priced multi-turn potentiometer, its embedded structure owns an international patent, shows reliable performance, and has a good reputation. In addition, Sibo still has ongoing promotional activities with the type. If you have higher requirements on lifetime, you can also choose the hybrid potentiometer 22HHPM, whose resolution is infinitesimal.

R22M Multi-turn Contactless Magnetic Potentiometer

As a member of contactless type potentiometer, it has an effective electrical angle of 3800 °. Speaking of contactless type, familiar friends may associate it with contactless magnetic potentiometers. As an upgraded product of traditional resistance potentiometers, contactless magnetic potentiometers have greatly improved their service life due to different operating principles, and also have more types of output signals: holding area, V-type output, dual output, etc.. All kinds of needs can be satisfied.

PART 02 Contactless Magnetic Potentiometer

R22 1-turn Contactless Magnetic POT.

As a high-end member of the R series, it has better protection capability and rotation life, and can easily cope with various harsh operating environments.

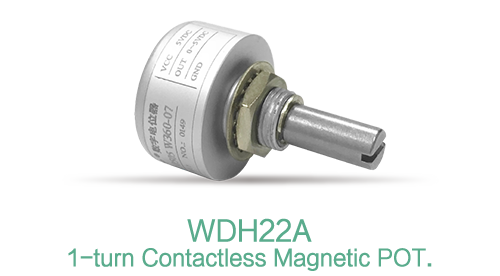

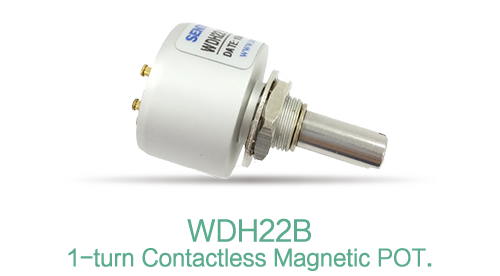

WDH22A/WDH22B 1-turn Contactless Magnetic POT.

The "twins" in the digital potentiometer family have similar appearances and are both terminal outputs. The older WDH22A is slightly thinner (case thickness 12mm), and it can be flexibly embedded in devices with small space; the newer WDH22B is slightly thicker (case thickness 13.5mm), but it is flexible and spacious (one ball bearing is included) , It has light torque and has Shaft sleeve installation.

WDH22L 1-turn Contactless Magnetic POT.

The hottest product of the 22 family, with silver metal shell, wire output, is economical, and is widely used in all walks of life.

WDH22S 1-turn Contactless Magnetic POT.

Among many products with a shaft diameter of φ6mm, this is a product with a shaft diameter of φ3mm. In the servo installation family, it has the lightest (contains 2 ball bearings) torque, high sensitivity, and can do a lot of delicate work.

WDH22F 1-turn Contactless Magnetic POT.

With two small ears, a sign of flange installation, it is usually presented as a dual-channel signal. But whether it is a dual-channel parallel or a dual-channel crossover output, it is never a problem. Special output modes with different slopes can also be customized according to customer needs.

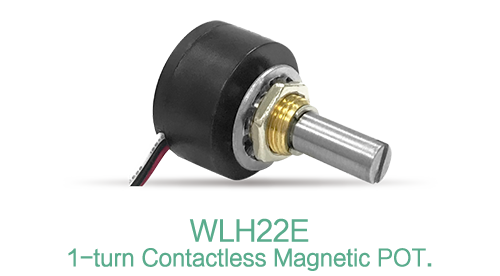

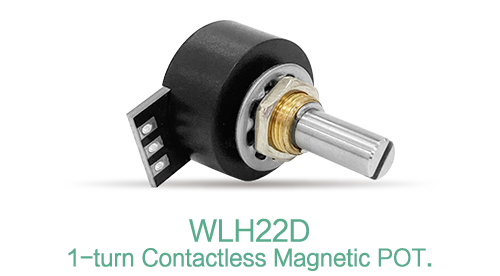

WLH22D/WLH22E 1-turn Contactless Magnetic POT.

These two have powerful strength and high cost effectiveness under low-key appearances. They perfectly explain the balance between high quality and affordable price, and there are different wiring methods for you to choose, WLH22D for circuit board mounting and WLH22E lead-out. They are your best choice for cost reduction.

PART 03 Conductive Plastic Potentiometer

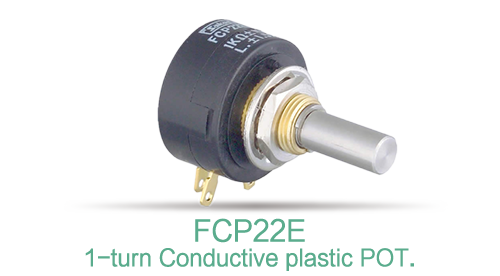

FCP22E 1-turn Conductive Plastic Potentiometer

FCP22E precision-grade Conductive Plastic Potentiometer makes the final appearance. Customers who need it in stock shall hurry up and find out! There are also ultra-precision SFCP22E-8864, SFCP22E-8812 with stop and SFCP22E with 100° small electric angle for you to choose. Contact us for details.

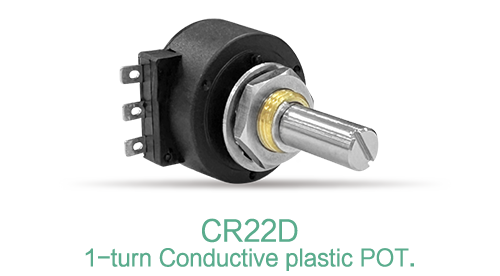

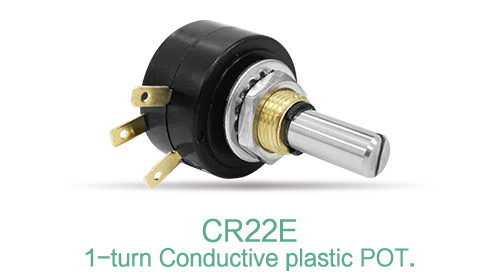

CR22D/CR22E 1-turn Conductive Plastic Potentiometer

CR22D and CR22E are both SENTOP series products with super high cost performance. At present, samples are being distributed, and you are welcome to come to consult.

Due to space limitations, the editor only selects the above-mentioned popular products to introduce. Facing a wide variety of products, do you feel confused in model selection, not knowing how to choose a product that meets your needs? Don't worry, Sibo has accumulated rich experience in the application of potentiometers, and has a professional technical team to assist customers in confirming product functions. Welcome to consult for model selection.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
